MATLAB Introductory Commands:

MATLAB variables

MATLAB Variables
MATLAB as a Calculator

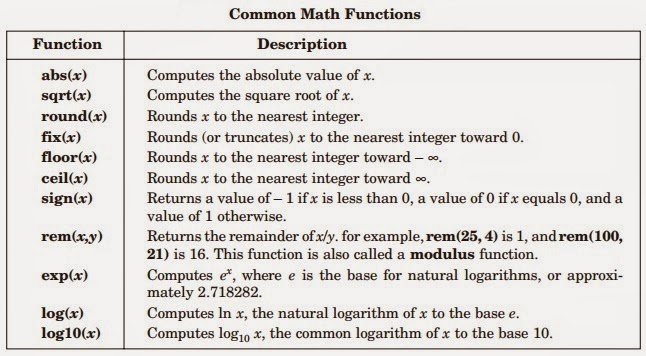

Mathematical Functions

Vector and Matrix Creation

Vector and Matrix Operations

Image Processing Toolbox

Viewing Images in MATLAB
Converting Images
Spatial Image Filtering

Program Control


  1. What is MATLAB?
  2. The MATLAB Environment
  3. MATLAB Variables
  4. MATLAB as a Calculator
  5. Mathematical Functions
  6. Creating Vectors via Concatenation
  7. Creating Uniformly Spaced Vectors (Colon Operator)
  8. Complex Numbers
  9. Array Size and Length
  10. Vector Arithmetic
  11. Accessing Elements of a Vector
  12. Vector Transpose
  13. Line Plots
  14. Annotating Graphs
  15. Stem Plots
  16. For Loop
  17. Discrete Fourier Transform
  18. Creating Matrices
  19. Concatenating Arrays
  20. Array Creation Functions
  21. Accessing Elements of an Array
  22. Matrix Multiplication
  23. Logical Operators
  24. Calculating Eigenvalues and Eigenvectors
  25. Working with Classes
  26. Structure Arrays

Clear & clc commands:
Clear command clears the variables value. For example, in the example below, the value of the 4 is assigned to pi. By executing clear command the value of the pi is no longer 4 and now it is 3.1416.
clc command clear the screen and all the commands will disappear. By using Help command you can get information about any function.



By using Tab button you can complete the command you entered in MATLAB. For example, you enter ezp but you don't know the rest of the command so you can use Tab button to access a list commands that starts with ezp.

Help command:



who & whos commands:



Scalar:









In the example below, the linespace command will create 10 numbers between 0 and pi/2. The interval of the 10 numbers are equal.







Random Figure Generator:



The brackets in the example below, deletes the third elements of the array. Now the array r has 5 elements.


Matrix:




Function Plot (sin(x)):













Vertical Motion under Gravity:








Linear equation examples:






Double Command: Double(x) returns the double-precision (Decimal) value for X.



To see other examples, click on Start button.



Select Demos option.













SUM command:



Disp command:



Format Command:






M-File:










To open the Editor:






For Loop:








Factorial and Limit calculation:







==========================================================
==========================================================

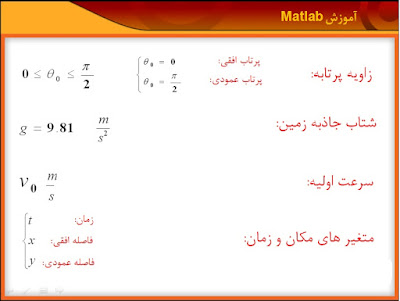

Introductory to structured programming (Projectile project):





% The proctile problem with zero air resistance
% in a gravitational field with constant g.
%
% An eight-step structure plan applied in MATLAB:
%
% 1. Definition of the input variables.
%
g = 9.81; % Gravity in m/s/s.
vo = input('What is the launch speed in m/s?')
tho = input('What is the launch angle in degrees?')
tho = pi*tho/180; % Conversion of degrees to radians.
%
% 2. Calculate the range and duration of the flight.
%
txmax = (2*vo/g) * sin(tho);
xmax = txmax * vo * cos(tho);
%
% 3. Calculate the sequence of time steps to compute trajectory.
%
dt = txmax/100;
t = 0:dt:txmax;
%
% 4. Compute the trajectory.
%
x = (vo * cos(tho)) .* t;
y = (vo * sin(tho)) .* t - (g/2) .* t.^2;
%
% 5. Compute the speed and angular direction of the projectile.
% Note that vx = dx/dt, vy = dy/dt.
%
vx = vo * cos(tho);
vy = vo * sin(tho) - g .* t;
v = sqrt(vx.*vx + vy.*vy);
th = (180/pi) .* atan2(vy,vx);
%
% 6. Compute the time, horizontal distance at maximum altitude.
%
tymax = (vo/g) * sin(tho);
xymax = xmax/2;
ymax = (vo/2) * tymax * sin(tho);
%
% 7. Display ouput.
%
disp(['Range in m = ',num2str(xmax),' Duration in s = ',...
    num2str(txmax)])
disp(' ')
disp(['Maximum altitude in m = ',num2str(ymax), ...
' Arrival in s = ',num2str(tymax)])
plot(x,y,'k',xmax,y(size(t)),'o',xmax/2,ymax,'o')
 title(['Projectile flight path, vo =',num2str(vo), ...
 ', th =', num2str(180*tho/pi)])
xlabel('x'), ylabel('y') % Plot of Figure 1.
axis('equal');
figure % Creates a new figure.
plot(v,th,'r')
title('Projectile speed vs. angle')
xlabel('V'), ylabel('\theta') % Plot of Figure 2.
%
% 8. Stop.
%




Structured Programming using functions (Projectile project):

function [xmax txmax] = projectile2(vo , tho)
%  proctile problem with zero air resistance
% this is edited projectile problem
% that uses function to define the program
% in a gravitational field with constant g.
%
% An eight-step structure plan applied in MATLAB:
%
% 1. Definition of the input variables.
%
g = 9.81; % Gravity in m/s/s.
tho = pi*tho/180; % Conversion of degrees to radians.
%
% 2. Calculate the range and duration of the flight.
%
txmax = (2*vo/g) * sin(tho);
xmax = txmax * vo * cos(tho);
%
% 3. Calculate the sequence of time steps to compute trajectory.
%
dt = txmax/100;
t = 0:dt:txmax;
%
% 4. Compute the trajectory.
%
x = (vo * cos(tho)) .* t;
y = (vo * sin(tho)) .* t - (g/2) .* t.^2;
%
% 5. Compute the speed and angular direction of the projectile.
% Note that vx = dx/dt, vy = dy/dt.
%
vx = vo * cos(tho);
vy = vo * sin(tho) - g .* t;
v = sqrt(vx.*vx + vy.*vy);
th = (180/pi) .* atan2(vy,vx);
%
% 6. Compute the time, horizontal distance at maximum altitude.
%
tymax = (vo/g) * sin(tho);
ymax = (vo/2) * tymax * sin(tho);
%
% 7. Display ouput.
%
disp(['Range in m = ',num2str(xmax),' Duration in s = ',...
    num2str(txmax)])
disp(' ')
disp(['Maximum altitude in m = ',num2str(ymax), ...
' Arrival in s = ',num2str(tymax)])
plot(x,y,'k',xmax,y(size(t)),'o',xmax/2,ymax,'o')
 title(['Projectile flight path, vo =',num2str(vo), ...
 ', th =', num2str(180*tho/pi)])
xlabel('x'), ylabel('y') % Plot of Figure 1.
axis('equal');
figure % Creates a new figure.
plot(v,th,'r')
title('Projectile speed vs. angle')
xlabel('V'), ylabel('\theta') % Plot of Figure 2.
%
% 8. Stop.
%




Access to functions in MATLAB:













Functions:

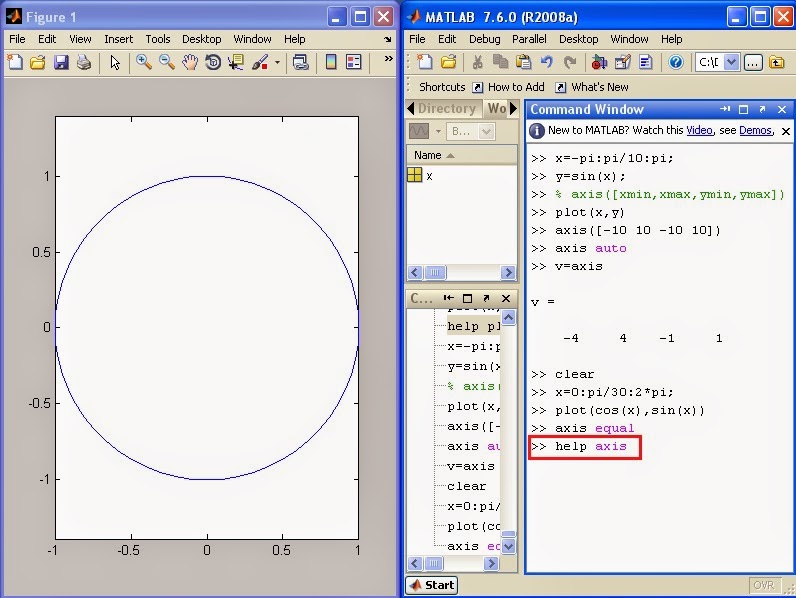

Searching functions by using Help command:









Input & Output in MATLAB:





Saving Data in text string with ASCII format:





% Income tax the old-fashioned way 1
inc = [50000 100000 150000 300000 500000];
for ti = inc
    if ti < 100000
        tax = 0.1 * ti;
    elseif ti < 200000
        tax = 10000 + 0.2 * (ti - 100000);
    else
        tax = 30000 + 0.5 * (ti - 200000);
    end;
    disp( [ti tax] )
end;

% Income tax the old-fashioned way 2
Income = input('What is your income?')
if Income<100000
    tax = 0.1*Income;
    elseif Income>100000&Income<200000
        tax = 10000 + 0.2*(Income-100000);
elseif Income>200000
    tax = 20000 + 0.5*(Income-200000);
end;
disp([Income tax]);

% Income tax the logical way
inc = [50000 100000 150000 300000 500000];
tax = 0.1 * inc .* (inc <= 100000);
tax = tax + (inc > 100000 & inc <= 200000) ...
    .* (0.2 * (inc-100000) + 10000);
tax = tax + (inc > 200000) .* (0.5 * (inc-200000) + 30000);
disp( [inc' tax'] );

% This program computes n!
n = 10; % This line can be changed in order to change n!
fact = 1;
for k = 1:n
    fact = k* fact;
end
disp([n fact]);

% This program computes the root of a real positive number
% and at the end shows the matlab's value for the root
format long
format compact
a = 2; % This line can be changed in order to change the results
x = a/2;
disp(['the approach to sqrt(a) for a=  '  num2str(a)]);
for counter = 1:6
    x = ( x + a/x)/2;
    disp(x)
end
disp('Matlab''s value:')
disp(sqrt(a))
format

% This program computes the limit of the sequence
% a^k / k! for arbitrary k (say 20)
a =20; % This line can be changed to change a
k = 10; % Number of terms you can change this line
x = 1;
for n = 1:k
    x = a*x/n;
    disp([n x])
end

% This program use Selective structure method: Switch
d = floor(10*rand);
switch d
case {2, 4, 6, 8}
    disp( 'Even' );
case {1, 3, 5, 7, 9}
    disp( 'Odd' );
otherwise
    disp( 'Zero' );
end

% This program creates a random integer number between 1 and 3 and displays the number in different cases
d = floor(3*rand) + 1
switch d
case 1
    disp( 'That''s a 1!' );
case 2
    disp( 'That''s a 2!' );
otherwise
    disp( 'Must be 3!' );
end
=========================================================
=========================================================
MATLAB Logical Operations:




Calculation of current output of a Diode:




Plot sin(x)/x:







y = tan(x):




















Examples:






==========================================================
==========================================================
MATLAB Matrix:





Application of (:) in matrix:











Copying and deleting rows and columns:






Primitive and special matrices:








Application of functions in matrices:










Matrices and For loop:

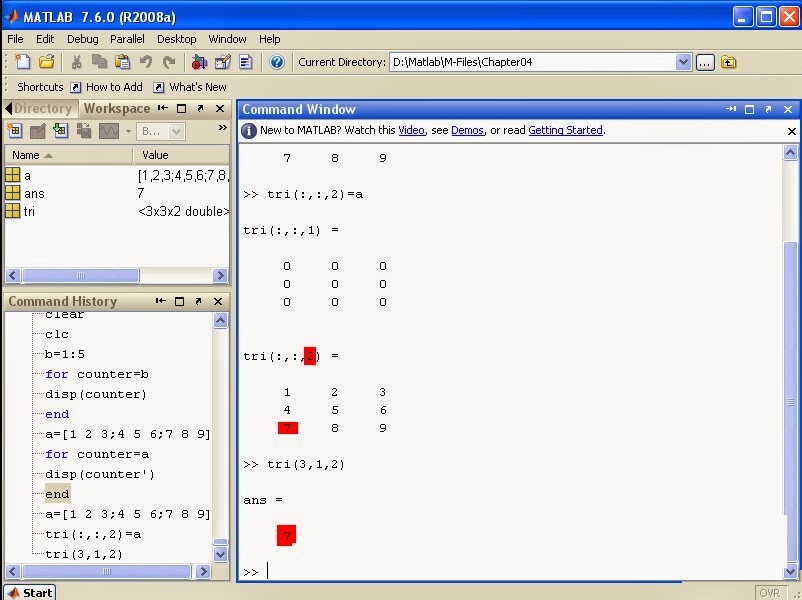

More dimensional matrices (3, 4, ...):





Product and power of matrices:




==========================================================
==========================================================
Text Strings:





ASCII Codes:





Text Strings functions:






Two dimensional Text strings and execution:



===========================================================
===========================================================
MATLAB Graphic Foundations:



















Labels:










Creating multi plots in one plot:





Line shape, Line color:







Plot Limits:









Creating multi plots in single window:










Defining a point by mouse:
Press Enter as well.



Number of points limited to 5 points.



Polar and Logarithmic Plots:

















Plotting with rapid changes:





2 dimensional Graphic plots:







==========================================================
==========================================================
3 Dimension Graphics:

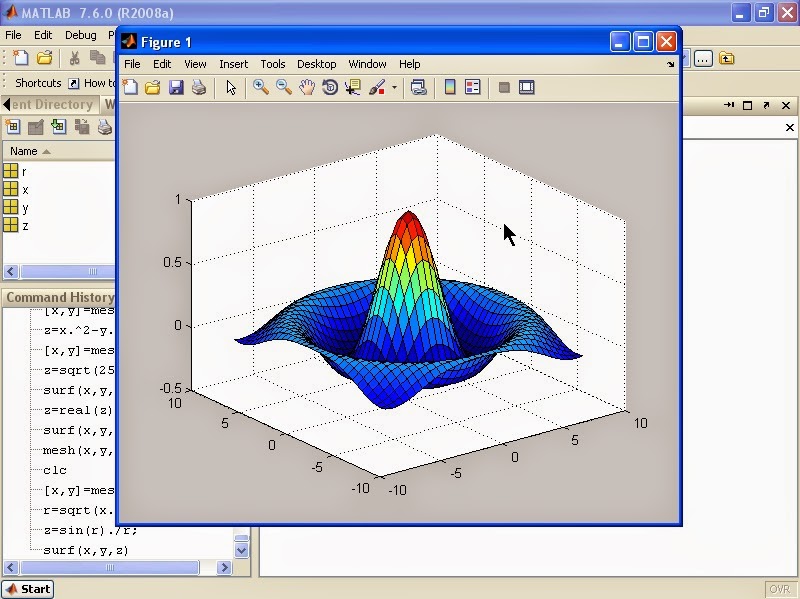

Creating Surfaces:










Changing surface domain by using NaN:



Contour Curves:























3D Dimensional Matrices:






3 Dimensional Graphic functions:






===========================================================
===========================================================
MATLAB Coding:

Function Categories:










Structure of function M-Files:








In one M-File you can define as many function as you can.


Workspaces:









Now we can use curve variable in two defined functions.

Various advanced data structure in MATLAB:










Cell Array data type:


=========================================================
=========================================================
Graphic User Interface (GUI):





Click on OK.






















Error Message:






















Slider Control:



























===========================================================














===========================================================
===========================================================
Matrix Main Functions:





Intersection of Rows and Columns:



Index into a matrix with a single index and MATLAB will handle it as if it was a vector using column-major order. Meaning that all the elements of one column are processed, in this case printed, before the elements of the next column. Column-major order is the default throughout MATLAB.



Meshgrid Function:


nargin & nargout Functions:
nargin is the number of input arguments and nargout is the number of output arguments that are in the user's calling statement.





Robustness:
A function declaration specifies:
  • Name of the function
  • Number of input arguments
  • Number of output arguments
Function code and documentation specify:
  • What the function does
  • The type of the arguments
  • What the arguments represent
Robustness:
  • A function is robust if it handles erroneous input and output arguments
  • Provides a meaningful error message




Persistent variable:
Variables:
  • Local
  • Global
  • Persistent
Persistent Variable:
  • It's a local variable, but its value persists from one call of the function to the next
  • Relatively rarely used
  • None of the bad side effects of global variables
persistent X Y Z defines XY, and Z as variables that are local to the function in which they are declared; yet their values are retained in memory between calls to the function. Persistent variables are similar to global variables because the MATLAB software creates permanent storage for both. They differ from global variables in that persistent variables are known only to the function in which they are declared. This prevents persistent variables from being changed by other functions or from the MATLAB command line.

Whenever you clear or modify a function that is in memory, MATLAB also clears all persistent variables declared by that function. To keep a function in memory until MATLAB quits, use mlock.
If the persistent variable does not exist the first time you issue the persistent statement, it is initialized to the empty matrix.
It is an error to declare a variable persistent if a variable with the same name exists in the current workspace. MATLAB also errors if you declare any of a function's input or output arguments as persistent within that same function. For example, the following persistent declaration is invalid:

         function myfun(argA, argB, argC)
   persistent argB



The value of the persistent variable is initialized to an empty matrix by default. To retain the values in memory (buffer) between calls to the function, use the below code. This way the values will not be "lost" during repeated calls to the function.



Persistent variable example:

=====================================================








=====================================================
=====================================================
MATLAB Examples:












===================================================

11 comments:


  1. Pretty great post. I simply stumbled upon your blog and wanted to mention that I have really loved surfing around your blog posts. Great set of tips from the master himself. Excellent ideas. Thanks for Awesome tips Keep it
    matlab-crack
    drivertoolkit-crack
    iexplorer-crack
    fxsound-enhancer-premium-crack
    lastpass-password-manager-crack
    gravit-designer-crack


    ReplyDelete
  2. Pretty great post. I simply stumbled upon your blog and wanted to mention that I have really loved surfing around your blog posts. Great set of tips from the master himself. Excellent ideas. Thanks for Awesome tips Keep it
    matlab-crack
    wondershare-filmora-scrn-crack

    ReplyDelete


  3. So nice I am enjoying for that post as for u latest version of this Security tool Available
    matlab-crack

    ReplyDelete
  4. I guess I am the only one who came here to share my very own experience. Guess what!? I am using my laptop for almost the past 2 years, but I had no idea of solving some basic issues. I do not know how to Crack Softwares Free Download But thankfully, I recently visited a website named ProCrackHere
    Mathworks Matlab Crack
    Wing Ftp Server Corporate Crack

    ReplyDelete
  5. Hello, this post gives very interesting information about off-season camping, really I like this information which is so much beneficial to us, keep sharing such kind of information, Thanks for sharing.
    Auslogics Driver Updater Crack
    MKVToolnix Crack
    Panda Antivirus Pro Crack
    WiFi Hacker Pro Crack
    MATLAB Crack

    ReplyDelete
  6. Such a Nice post. Thanks for Awesome tips Keep it up
    matlab-crack-full-license-key

    ReplyDelete
  7. Nice post! This is a very nice blog that I will definitely come back to more times this year! Thanks for the informative
    post. download MATLAB

    ReplyDelete
  8. Nice post! This is a very nice blog that I will definitively come beck to moretimes this year! thanks for the informative post Download.
    MATLAB Crack
    Avid Sibelius Ultimate Crack
    Weather Watcher Live
    Easybits Magic Desktop
    LogMeIn Hamachi

    ReplyDelete
  9. I like your all post. You have done really good work. Thank you for the information you provide, it helped me a lot. I hope to have many more entries or so from you.

    Very interesting blog.

    FontCreator Pro Crack

    ReplyDelete
  10. I like your all post. You have done really good work. Thank you for the information you provide, it helped me a lot. I hope to have many more entries or so from you.

    Very interesting blog.


    MATLAB Crack


    Pixellu SmartAlbums Crack

    ReplyDelete
